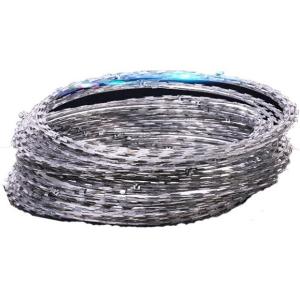

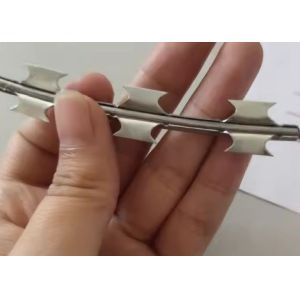

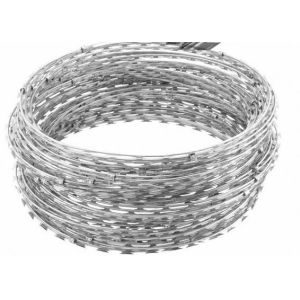

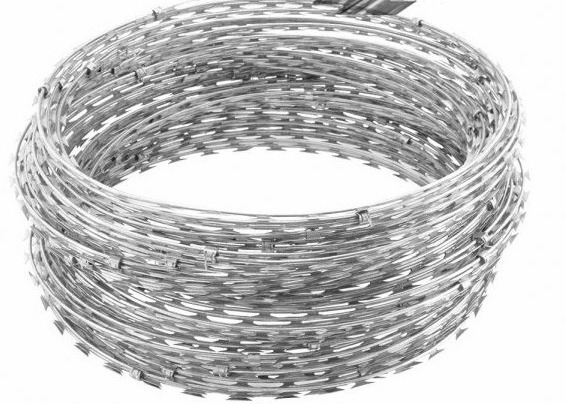

    Bto-22 Hot Dipped Galvanized Razor Wire Fence

    Ask Lasest Price
    Brand Name : Qijie
    Model Number : QJ-R001
    Certification : ISO9001
    Price : discuss
    Payment Terms : 30%TT in advance, Balance before loading
    Supply Ability : 100 tons per week
    Delivery Time : 15-20 days
    • Product Details
    • Company Profile

    Bto-22 Hot Dipped Galvanized Razor Wire Fence

    Bto-22 Hot Dipped Galvanized Razor Wire Fence


    Concertina Razor Wire, also called Razor Wire. it the normal type of Razor wire you see around prisons and high security establishment .As an effective and economical security barrier, with its high security function, Concertina Razor Wire can prevent most of the intruders for it is hard and dangerous to broken. With the Concertina Razor Wire on the top of other fences, it can greatly improve the safety factor.Razor Mesh has been in use throughout the world at airports, Garden,Playground etc.
    Single Coil Razor Wire
    Single coil Concertina Wire is installed without clips, it runs in natural loops on walls.Cost less and can be easily installed.

    Crossed Razor Wire
    Two pieces of razor wire were bounded together by clips to make it more strength.The spiral intersecting barbed wire presents an intersecting shape after opening with beautiful feature and practicality.

    Flat warp razor wire
    Flat warp razor wire is a new type of razor barbed wire. Press two loops into flat then expand them across. We usually use it together with been line razor barbed wire to build a defending wall, or use it alone as a fence.

    Razor Wire Fence
    Welded razor mesh fence is a new form of razor bared wire mesh for security,it with practicality blade and the feature looks very beautiful.It can be used for guard net of fence ,doors and windows and also can be used in Airport.The specification can be designed as the customers' need.


    razor wire

    Reference NumberThicknessWire Dia.Blade LengthBlade WidthBlade Spacing
    BTO-120.5±0.052.5±0.112±115±126±1
    BTO-150.5±0.052.5±0.115±115±133±1
    BTO-220.5±0.052.5±0.122±115±134±1
    BTO-300.5±0.052.5±0.130±118±145±1
    CBT-250.5±0.052.5±0.125±116±140±1
    CBT-600.6±0.052.5±0.160±232±1100±2
    CBT-650.6±0.052.5±0.165±221±1100±2

    Barbed Tape Concertina (CBT);Barbed Tape Obstacle (BTO)
    Standard materials are either galvanized or stainless steel.430/304/316
    Standard packages products are shown in the tables above, special specifications are available on request.


    Concertina Razor Wire (Standard Use)
    Outside DiameterNo. of LoopsStandard Length per CoilTypeNotes
    450mm337-8MCBT-60.65Single coil
    500mm5612-13MCBT-60.65Single coil
    700mm5613-14MCBT-60.65Single coil
    960mm5614-15MCBT-60.65Single coil
    450mm568-9M (3 CLIPS)BTO-10.12.18.22.28.30Cross type
    500mm569-10M (3 CLIPS)BTO-10.12.18.22.28.30Cross type
    600mm5610-11M (3 CLIPS)BTO-10.12.18.22.28.30Cross type
    600mm568-10M (5 CLIPS)BTO-10.12.18.22.28.30Cross type
    700mm5610-12M (5 CLIPS)BTO-10.12.18.22.28.30Cross type
    800mm5611-13M (5 CLIPS)BTO-10.12.18.22.28.30Cross type
    900mm5612-14M (5 CLIPS)BTO-10.12.18.22.28.30Cross type
    960mm5613-15M (5 CLIPS)BTO-10.12.18.22.28.30Cross type
    980mm5614-16M (5 CLIPS)BTO-10.12.18.22.28.30Cross type

    Specification of razor blade wire:

    1,Normal hot dipped galvanized razor wire(40-60g)

    2,Heavily zinc coated razor wire (70-270g)

    3,Stainless steel 304/316 grades razor wire

    Clips of concertina wire: 3clips, 5clips or without clips

    Coil Diameter of concertina wire: 300mm 450mm 500mm 600mm 700mm 800mm 950mm 1000mm


    Package of razor wires:

    1,waterproof paper inside,woven bag outside,then 50rolls/bundle or as required

    2,In bulk,then packing by wooden pallet or in bulk


    Usage

    * Government place

    * Factory land

    * School playground

    * Public buildings

    * Car parks

    * Business parks and retail premises

    * Other places

    razor wire
