1.5mm Thickness Anodizing Aluminum Round Perforated Metal Sheet For
Architectural
Perforated Metal Sheet is defined by the punching materials,
perforated patterns, gauge, staggered angle, sheet thickness and
porosity. These factors combine together to form the yield strength, filter
rating and proper application. Round hole perforated metals are
suitable for filter tube processing with uniform and precise
control of flow materials. Following two parts: the general
information of perforated metal, and new inquiry from customers.
For your order reference.
Common open area or porosity: 20%, 26%, 23%, 30%, 40% and 35%.
Hole Diameter:1.0-6.0mm
Thickness of Metal Plate:0.2-3mm
Material to be punched:
Plain steel sheet and galvanized steel sheet;
Stainless steel sheet;
Copper sheet;
Brass sheet;
Aluminum sheet;
Other metals alloys.
Punched openings : Round, square, triangle, diamond, stright line
slot, hexagonal, cross, decorative, etc. The round hole perforation
is the most popular type of perforated pattern used and is
manufactured in coils or sheets.
1, Material:
Carbon steel, Hot rolled sheet and coil, cold rolled sheet and
coil, Galvanized.
Aluminum:1060/3004 H14/5052-H32/6061-T4.
Stainless steel:304 Stainless steel,304L Stainless Steel,
316,316-L,409.
Brass, and various of nonmetal plate.
2, Surface treatment:Anodizing, Coating, Electro-galvanizing, Hot Dip Galvanizing,
Painting, Powder Coating.
| Material | Thickness of Metal (mm) | Hole dia. (mm) | Pitch(mm) | Sheet Width (m) | Sheet Length (m) | Porosity(%) | Weight(kg/m2) |
Rolling
plate | 0.2
0.35
0.45
0.8 | Ø 6
Ø 5
Ø 6
Ø 3 | 2
4
3
3 | 1
1
1
1 | 2
2
2
2 | 44
24
35
19.6 | 0.88
2
2.5
3 |
| Flat plate | 0.5
0.5
0.55
0.8
0.8
1.5
1.5
3 | Ø 1
Ø 1.1
Ø 1.5
Ø 2
Ø 2
Ø 2
Ø 5
Ø 5 | 1
2.2
2.8
1.5
3.4
2
8
16 | 1
1
1
1
1
1
1
1 | 2
2
2
2
2
2
2
2 | 19.6
22.67
26.03
19.6
30.78
19.6
35.39
19.6 | 3.14
3.411
3.268
5
4.465
9.4
7.843
18.8 |
Stainless
steel plate | 0.5
0.8
1
2 | Ø1
Ø1.5
Ø2
Ø5 | 1
1.5
2
16 | 1
1
1
1 | 2
2
2
2 | 19.6
19.6
19.6
19.6 | 3.14
5
6.28
6.28 |
Aluminum
plate | 0.5
0.8
1.6
3 | Ø1
Ø3
Ø2
Ø4 | 1
3
2
16 | 1
1
1
1 | 2
2
2
2 | 19.6
19.6
19.6
19.6 | 1.08
1.72
3.24
4.23 |
3, Other produce we can do :Angle Cutting, Annealing, Bending, Bolt Holes, Circle Cutting,
Cleaning Perforated, Coiling, Corrugating, Cut to Size, De-Burring,
Drawings Required, Indented Holes, Laser Cutting, Notching,
Plasma Cutting, Plating, Polishing, Slitting, Stamping, Straight
Cutting, Welding
4, Applications:Include air diffusers for HVAC equipment, acoustical panels for
noise control,
Components for water filters, and architectural elements.The uses
for perforated aluminum are virtually unlimited.Also used for
Building Facades, Ceilings, Displays, Enclosures, Fencing Panels,
Fixtures, Flooring, Furniture, Grating, Guards, Infill Panels,
Ladder Rungs, Partition Panels, Plant Screens, Platforms, Screens,
Security Panels, Shelving, Stairways or Treads, Sunshade Panels,
Walkways.

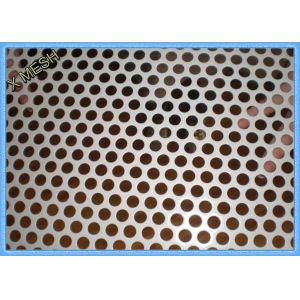

Anodizing Aluminum Round Perforated Metal Sheet
round hole perforated hole sheets
hexagonal hole perforated hole sheets
rectangle hole perforated hole sheets
long hole perforated hole sheets
