X Tend 7 × 7 1.5mm Wire Stainless Steel Ferrule Rope Mesh
The stainless steel ferrule rope mesh is manufactured from robust, high-grade DIN 1.4401/AISI 316
stainless steel cables. The cables are swaged with stainless steel,
copper or aluminium clamps in a special process to form a mesh
structure that is both stressable and flexible and suited for
either two- or three-dimensional applications. The stainless steel
net is suited for interior and exterior applications.Installed on
railings or in stairways, it provides stability and clear guidance.
On façades, it can serve as a climbing support for plants or it can
set delicate accents as a dividing element in large spaces.
As a permanent protection and fall-stop feature for bridges or
observation platforms, it is totally UV resistant and weatherproof
– in contrast to traditional knotted synthetic-fibre rope nets.
The greatest advantage, however, is its delicate structure.
Especially in zoo animal enclosures or protective nets, the visual
impairment due to the unavoidable barrier is minimal.
Properties
Stainless Steel Wire Rope Mesh is a construction of
corrosion-resistant steel ropes placed parallel to one another in
pairs connected by alternating sleeves to produce a symmetrical
bent pattern. The nets are fabricated application-specifically
according to your customer specifications. This means there are no
limits to the shape and size. The mesh orientation of Webnet can be
selected as desired, yet it is typically arranged vertically or
horizontally for geometric shapes.
The items in the programme are fabricated of high-quality
corrosion-resistant steel of the material groups AISI 316 and AISI
316L (1.4401 and 1.4404).
Production
The wire rope nets are designed and fabricated in our factory to
the exact size designated in the plans provided by the structural
engineer. This greatly simplifies and accelerates the installation
on the building structure because no cutting to size or adaptation
is required at the job site. The result is impressive: Uniform mesh
size, consistent tensioning and perfect edge connections.

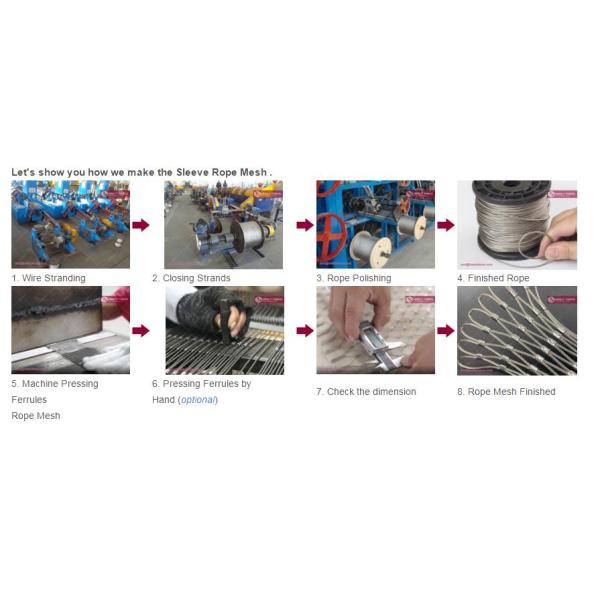

The nets are put together by hand and are subsequently pressed
using machinery. This ensures that the Webnet achieves a consistent
quality and guaranteed strength values. The exceptionally
corrosion-resistant steel for exterior applications (AISI 316/316L)
is processed with care and its quality is monitored continuously.
This is the only way for us to be sure that our customers receive
the best steel quality.
Applications
In combination with architectural ropes Webnet is used in a wide
variety of ways: railing infill, protective nets, safety nets,
barricades, fences, zoo enclosures, aviaries, suicide prevention,
façade greening, artwork, ball nets, stair wells, skylight
protection, fall-stop nets, bridge protection, machine protection,
etc.
Available 1.0mm-3.0mm wire rope for the mesh. Mesh opening width
(OW) from 20mm-200mm.
| 1.0mm Rope Mesh |
|---|
| Product Code | MBL (KN) | Ø Rope (mm) | OW (mm) | OH (mm) | Area % | KG/m2 |
|---|
| CD1020 | 0.69 | 1 | 20 | 35 | 72 | 1 |
| CD1025 | 0.69 | 1 | 25 | 45 | 78 | 0.74 |
| CD1030 | 0.69 | 1 | 30 | 52 | 80 | 0.58 |
| CD1035 | 0.69 | 1 | 35 | 61 | 85 | 0.64 |
| CD1040 | 0.69 | 1 | 40 | 70 | 86 | 0.41 |
| CD1050 | 0.69 | 1 | 50 | 90 | 88 | 0.3 |
| CD1060 | 0.69 | 1 | 60 | 105 | 89 | 0.24 |
| CD1070 | 0.69 | 1 | 70 | 120 | 92 | 0.19 |
| CD1080 | 0.69 | 1 | 80 | 140 | 93 | 0.16 |
| 1.5 mm Rope Mesh |
| Product Code | MBL (KN) | Ø Rope (mm) | OW (mm) | OH (mm) | Area % | KG/m2) |
| CD1525 | 1.6 | 1.5 | 25 | 45 | 72 | 1.59 |
| CD1530 | 1.6 | 1.5 | 30 | 52 | 76 | 1.25 |
| CD1535 | 1.6 | 1.5 | 35 | 61 | 81 | 0.99 |
| CD1540 | 1.6 | 1.5 | 40 | 70 | 83 | 1.22 |
| CD1550 | 1.6 | 1.5 | 50 | 90 | 87 | 0.87 |
| CD1560 | 1.6 | 1.5 | 60 | 105 | 89 | 0.68 |
| CD1570 | 1.6 | 1.5 | 70 | 120 | 91 | 0.54 |
| CD1580 | 1.6 | 1.5 | 80 | 140 | 92 | 0.34 |
| CD15100 | 1.6 | 1.5 | 100 | 175 | 94 | 0.32 |
| CD15120 | 1.6 | 1.5 | 120 | 210 | 95 | 0.27 |
| CD15140 | 1.6 | 1.5 | 140 | 240 | 96 | 0.23 |
| CD15160 | 1.6 | 1.5 | 160 | 280 | 97 | 0.2 |
| CD15180 | 1.6 | 1.5 | 180 | 312 | 98 | 0.17 |
| CD15200 | 1.6 | 1.5 | 200 | 350 | 99 | 0.14 |
| 2.0 mm Rope Mesh |
| Product Code | MBL (KN) | Ø Rope (mm) | OW (mm) | OH (mm) | Area % | KG/m2 |
| CD2035 | 2.9 | 2 | 35 | 61 | 67 | 1.85 |
| CD2040 | 2.9 | 2 | 40 | 70 | 70 | 2.15 |
| CD2050 | 2.9 | 2 | 50 | 90 | 77 | 1.53 |
| CD2060 | 2.9 | 2 | 60 | 105 | 81 | 1.2 |
| CD2070 | 2.9 | 2 | 70 | 120 | 84 | 0.95 |
| CD2080 | 2.9 | 2 | 80 | 140 | 86 | 0.78 |
| CD20100 | 2.9 | 2 | 100 | 175 | 89 | 0.57 |
| CD20120 | 2.9 | 2 | 120 | 210 | 91 | 0.48 |
| CD20140 | 2.9 | 2 | 140 | 240 | 92 | 0.4 |
| CD20160 | 2.9 | 2 | 160 | 280 | 93 | 0.34 |
| CD20180 | 2.9 | 2 | 180 | 312 | 94 | 0.29 |
| CD20200 | 2.9 | 2 | 200 | 350 | 95 | 0.24 |
| 3.0 mm Rope Mesh |
| Product Code | MBL (KN) | Ø Rope (mm) | OW (mm) | OH (mm) | Area % | KG/m2 |
| CD3040 | 7 | 3 | 40 | 70 | 37 | 4.29 |
| CD3050 | 7 | 3 | 50 | 87 | 51 | 3.1 |
| CD3060 | 7 | 3 | 60 | 104 | 60 | 2.45 |
| CD3070 | 7 | 3 | 70 | 121 | 66 | 1.95 |
| CD3080 | 7 | 3 | 80 | 139 | 71 | 1.63 |
| CD30100 | 7 | 3 | 100 | 173 | 76 | 1.19 |
| CD30120 | 7 | 3 | 120 | 208 | 80 | 1.02 |
| CD30140 | 7 | 3 | 140 | 242 | 83 | 0.85 |
| CD30160 | 7 | 3 | 160 | 277 | 85 | 0.74 |
| CD30180 | 7 | 3 | 180 | 312 | 87 | 0.63 |
| CD30200 | 7 | 3 | 200 | 346 | 89 | 0.52 |
How The Rope Mesh Works

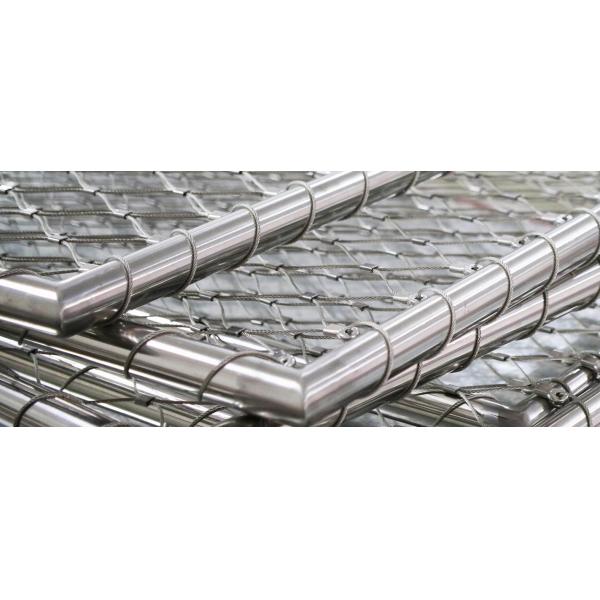

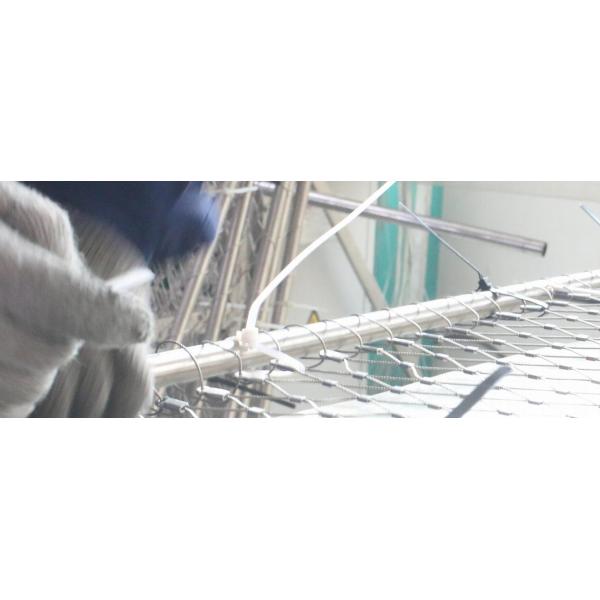

Flexible stainless steel wire rope mesh net can be installed on
tube frame or tension cable by special border design directly.
Available L01- L30 edge design plans. Select suitable ferruled wire
mesh edge pattern for install quickly and easily.
Where to use:
Railing & Balustrade Infill.
Green Wall.
Safety Net.
Animal Enclosure In Zoo.
Note: Panel height and width asked inside frame dimension.
