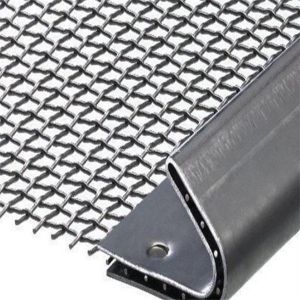

65mn Steel Mining Screen Mesh , Hooked Vibrating Rock Screen
Galvanized 1.5m X 2m
We offer all mesh media types to suit all screening models and
applications.
Product application:
Heavy industrial Vibrating Screen Mesh is available in different
wire diameters, mesh opening and open area. This is widely used for
various applications such as screening, sizing, grading, shifting,
separating, scalping and washing. This wire mesh can be also custom
designed in case plungers and vibrating rods are needed to insert
for protection against tearing. It is installed above rubber beads
to avoid metal to metal contacts.
Material: black wire, spring steel wire, 65mn manganese steel wire and
stainless steel wire.
Surface Treatment: galvanized or painted.
Mesh Size: 1mm - 100mm.
Hole Type: square, rectangular and long slot.
Opening Size: 2.0 - 80.0 mm
Wire Diameter: 0.8 - 8 mm
Supplied Dimensions: as required by customer, in rolls or formats
Installation Instructions:
The screen is installed with using of tensioning metallic bars into
a separator over different types of hook strips, further with using
of side bars and wedges, possibly is fastened into a frame.
Features:
· Varied lengths
· Require less maintenance
· Sturdy construction
Specification:
| No | Steel Grade | Chemical Composition |
| C | Si | Mn |
| 1 | 45 | 0.42-0.50 | 0.17-0.37 | 0.50-0.80 |
| 2 | 50 | 0.47-0.55 |
| 3 | 55 | 0.52-0.60 |
| 4 | 60 | 0.57-0.65 |
| 5 | 65 | 0.62-0.70 |
| 6 | 70 | 0.67-0.75 |
| 7 | 65Mn | 0.62-0.70 | 0.90-1.20 |
| 8 | 72A | 0.70-0.75 | 0.15-0.35 | 0.30-0.60 |
| Mesh/inch | Wire Diameter | Aperture | Open Area | Weight(LB)/100square foot |
| Inch | MM | Inch | MM |
| 2x2 | 0.063 | 1.6 | 0.437 | 11.1 | 76.4 | 51.2 |
| 3x3 | 0.054 | 1.37 | 0.279 | 7.09 | 70.1 | 56.7 |
| 4x4 | 0.063 | 1.6 | 0.187 | 4.75 | 56 | 104.8 |
| 5x5 | 0.041 | 1.04 | 0.159 | 4.04 | 63.2 | 54.9 |
| 6x6 | 0.035 | 0.89 | 0.132 | 3.35 | 62.7 | 48.1 |
| 8x8 | 0.028 | 0.71 | 0.097 | 2.46 | 60.2 | 41.1 |
| 10x10 | 0.02 | 0.51 | 0.08 | 2.03 | 64 | 26.1 |
| 12x12 | 0.023 | 0.584 | 0.06 | 1.52 | 51.8 | 42.2 |
| 14x14 | 0.023 | 0.584 | 0.048 | 1.22 | 45.2 | 49.8 |
| 16x16 | 0.018 | 0.457 | 0.0445 | 1.13 | 50.7 | 34.5 |
| 18x18 | 0.017 | 0.432 | 0.0386 | 0.98 | 48.3 | 34.8 |
| 20x20 | 0.02 | 0.058 | 0.03 | 0.76 | 36 | 55.2 |
| 24x24 | 0.014 | 0.356 | 0.0277 | 0.7 | 44.2 | 31.8 |
| 30x30 | 0.013 | 0.33 | 0.0203 | 0.52 | 37.1 | 34.8 |
| 35x35 | 0.011 | 0.279 | 0.0176 | 0.45 | 37.9 | 29 |
| 40x40 | 0.1 | 0.254 | 0.015 | 0.38 | 36 | 27.6 |
| 50x50 | 0.009 | 0.229 | 0.011 | 0.28 | 30.3 | 28.4 |
| 60x60 | 0.007 | 0.178 | 0.0097 | 0.25 | 33.9 | 20.4 |
| 70x70 | 0.0065 | 0.165 | 0.0078 | 0.2 | 29.8 | 20.8 |
| 80x80 | 0.0065 | 0.165 | 0.006 | 0.15 | 23 | 23.2 |
| 90x90 | 0.005 | 0.127 | 0.0061 | 0.16 | 30.1 | 15.8 |
| 100x100 | 0.0045 | 0.114 | 0.0055 | 0.14 | 30.3 | 14.2 |
| 110x110 | 0.004 | 0.1016 | 0.0051 | 0.1295 | 30.7 | 12.4 |
Carbon Steel Parameter:
