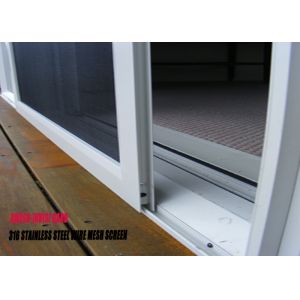

SS Windon Screen Mesh, Anti-Theft Stainless Steel Security Window
Screen, Insect window screen, Fire proof insect window screen.
Invisible metal window screen. anti-insect window screen, anti-fly
mesh, anti-mosquito screen.Anti-Theft Stainless Steel Security
Window Screen,Knife Proof stainless steel window screen.
Security screen is made of different grade of stainless steel material, including
SS 201, SS 304 and SS 316. The SS wires are plain weaved into
square meshes in 10 mesh to 14 mesh. The thicker wire diameter,
small meshes and durable materials ensures high tensile strength,
corrosion and rust resistance, chemical stability performance. And
most of all, it has extremely solid structure, which is bullet,
knife, scissors, hammer and almost all tools proof. It is nearly
impossible to break through with any tools except key.
Material type: Stainless steel 304,304l,316,316l,
Weave type: plain weave style
Common specification: 11 mesh * 0.8mm wire, 11 mesh* 0.9mm wire,10 mesh * 0.9mm wire,
12mesh* 0.7mm wire,14 mesh* 0.6mm wire, 14 mesh * 0.7mm wire
Standard size: 750mm×2000mm 900mm×2000mm 1200mm×2000mm 750mm×2400mm 900mm×2400mm
1200mm×2400mm,1300mmx2600mm, 1500mmx2400mm.
Color: black,white, gray, dark gray,
| Product | Stainless Steel Security Window Screen |
| Material | SS302, 304, 304L, 316, 316L, etc |
| Weaving Pattern | Plain Weaving; Twill Weaving; Dutch Weaving; etc |
| Wire Dia. | 0.18mm-1.2mm |
| Mesh Number | 11mesh-30mesh |
| Width | 0.6m-1.5m |
| Edge Processing | Closed Selvage; Flash; Perm Border |
| Color | White; Black; Green; Gray; etc |
| Characteristic | acid proof, alkali proof, high temperature resistant,
wear-resisting |
| Application | 1. stall in window or door as window screen or mosquito
2. used in greenhouse as anti-insect or anti trip net
3. used in fishing breed or poultry rasing as pool or garden guard
4. uesd in agricutlure product for food drying |
Light duty specification list
| Product name | Specification | Introduction |
| Mesh/Inch | Wire diameter | Roll size (m) | |
| Stainless Steel insect screen | 16 × 16 | 0.35mm | 0.6 x 30.5 0.9 x 30.5 1.2 x 30.5 | Material: ss304, ss316 |
| 18 × 18 | 0.23mm |
| 18 × 14 | 0.28mm |
| 20 × 20 | 0.18mm |
| 24 x 24 | 0.22mm |
For high traffic areas, such as doors or windows, you can select
our heavy duty stainless steel insect mesh. The mesh can be
installed to protect windows or doors; it can also play a part to
keep insects out, but also provide extra security without
comprising ventilation.
Heavy duty specification list
| Product name | Specification | Introduction |
| Mesh/Inch | Wire diameter | Panel size (mm) | |
Stainless steel fly screen mesh | 10 × 10 | 0.9mm | 1500 x 2500 1300 x 2600 1200 x 2000 1200 x 2400 1000 x 2400 | Material: T 304, T 316 |
| 11 × 11 | 0.8mm |
| 12 × 12 | 0.7mm |
- Customized sizes can also be supplied
- 316 marine grade stainless steel
- Corrosion resistant and ideal for bushfire-prone or coastal areas
- Black powder coated to minimize glare and has excellent visibility
- Ember protection
