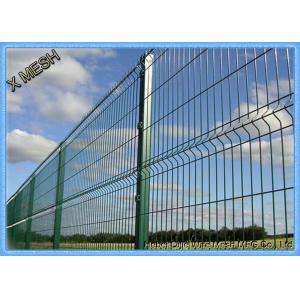

Border 10 Gauge Black PVC Coated Triangle Curved 3D Wire Mesh Fence
Product descriptions
3D Curved Welded Wire Fence is a combination of wires in the
horizontal and vertical direction welded at their junctions to
provide a rigid wire mesh fence. A number of differing designs are
manufactured from 3mm to 8mm wire at varying spacings for economy
or strength. Styles with minimum horizontal bars widely spaced are
used to restrict or deny climbing. Most curvy welded fence is
supplied in a "hot galvanised" finish, due to their exposure to the
elements and particularly salt laden atmospheres. However, for a
more pleasing effect they can be powder coated in a range of
popular colours.
Material: low carbon steel wire.
Colors : green, yellow, black, red ,dark brown etc .
Surface Treatment: electro galvanized, hot dipped galvanized,pvc coated, powder coated
Application: used for fencing and protection for road, railway, airport,residence district, seaport, garden, feeding and husbandry etc
Specification:
V Shape PVC Coated Security Fence Wholesale
1). High quality galvanized steel tube with minimum 60g/square
meter galvanization.
2). Silico bronze welded make the welding seam extremely smooth and
rust free any time.
3). Special designed welding jig make all welding no deforming
fence panel.
4). Sand blasting and phosphating before powder coating.
5). Akzo Nobel high quality powder coating make the fence panel
long life.
Specification
PVC coated galvanized 3d mesh fence panel |
Panel height | Panel Length | Wire Diameter | Mesh Size | Folds No. |
1.03m | 2.0m
2.1m
2.2m
2.5m
3.0m | Gal+PVC Painted
3.85mm/4.0mm
4.85mm/5.0mm
Gal+PVC Coated
3.0mm/4.0mm
4.0mm/5.0mm | 50*200mm
55*200mm
50*150mm
55*100mm
50x100mm,
75x150mm,
| 2 |
1.23m | 2 |
1.5m | 3 |
1.53m | 3 |
1.7m | 3 |
1.73m | 3 |
1.8m | 4 |
1.93m | 4 |
2.0m | 4 |
2.03m | 4 |
2.4m | 4 |
Specifications of 3D Curved Welded Wire Fence
Height Above
Ground (m) | Panel Size
(mm) | Mesh Size
(mm) | Numbers of
Beams | Post Diameter
(mm) |
| 1.2 | 1230x2500 | 50x100/50x200 | 2 | 50x70 |
| 1.8 | 1830x2500 | 50x100/50x200 | 3 | 50x70 |
| 2.0 | 2030x2500 | 50x100/50x200 | 4 | 70x100 |
| We can also manufacture the weld mesh fencing as per your dimension
of the specification |
Curved mesh Panel of 3D curved Mesh Fence
Curved mesh Panel of 3D curved Mesh Fence
Post install of 3d curved mesh fence:
Peach post
|
square post
|
Rectangular post
|
Round Post
|
Install of 3D Security Fence
Features of 3D security fence
- High strength.
- Corrosion and rust resistance.
- Weather resistance.
- Various colors for choice.
- Durable and long service life.
- Different installation types.
- Can suit different installation environments.
- Prevent intruders from entering the unwanted areas.
Range of application:
Enclosing:
Road and transit(highway, railway, road, city transit)
Science & Industry Zone(factory, industry zone, sightseeing zone,
new pattern farm)
Private grounds(courtyard, villadom)
Public grounds(park, zoo, train or bus station, lawn)
Commercial grounds(corporation, hotel, supermarket)
