45# 65mn Steel Wire High Manganese Stainless Steel Woven Crimped Wire Mesh Mining Screen Mesh Manufacture​

we are a professional manufacturer of expanded metal mesh, perforated metal mesh, decorative wire mesh, stamping parts and deep processing of other wire mesh products.We been specialized in wire mesh for 20 years and understand your requirement more precisely. With annual production of 500 tons, we can guarantee you get the stock on time with a more competitive price abnd guaranteed quality.

Metal wire/ screen mesh:

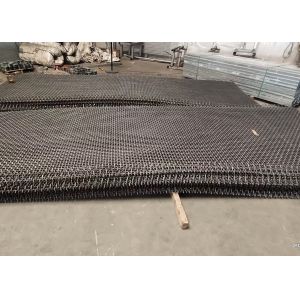

Vibrating screen mesh/Crimped Wire Mesh for Mining (factory)
1.Vibrating screen mesh Material:
1) Stainless steel wire (201,202,302,304,304L,310,316,316L)
2) High carbon steel wire, low carbon steel, medium carbon steel, steel wire, black wire.
3) Galvanized iron wire,galvanized steel wire
Aluminum wire,copper wire,non-ferrous metal wire,Other materials are available on request.

2.Vibrating screen mesh crimp methods: plain weaved, can be crimped(double crimp, intermediate crimp, lock crimp, flat top crimp, lock slot crimp
3.Vibrating screen mesh Features: Even mesh, strong structure
4.Vibrating screen mesh specifications:
Wire diameter:0.3mm~12mm
Hole size:1.5mm ~50mm

1. Double Crimp Woven Wire
Used for medium to heavy wire in relation to screen opening size.

2. Lock pre-crimp mesh
Unlike plain crimped mesh, lock crimped mesh is characterized by straight sections of wire connected by a well defined bump at the wire intersections, such a manner to actually lock the wires together, offering further assurance of no wire movement. Our lock crimp wire mesh is good in quality and competitive at price.

3. Flat Top Woven Wire

Flat top is similar to the lock crimp, but all of its crimping is offset to one side of the material. This creates a smooth top surface-with no high points-as all wires are woven on a single plane. Its bottom side, however, has crimp bumps approximately twice the height of lock crimp bumps. Flat top was originally created to allow for the smooth flow of materials over the surface and provide a flat face for use as backer screens. Flat top is ideal for aggregate sizing and sorting, agriculture, filtration, and heat-treating applications.

4. Intermdiate Crimp Woven Wire
Used in coarse weaves of lighter gauge woven wire to provide greater stability, tightness of weave and maximum rigidity. Very common in wire mesh openings larger than 1/2" (12.7mm).

Applications

• Mining industry
• Coal factory
• Construction industry
• Food processing and meat industry

Used for

• Grid window
• Poultry protection
• Concrete reinforcement
• Building construction

Packing
Packing: In rolls, wrapped with waterproof paper then covered with hessian-cloth. Special packing may be arranged if necessary.
